2014 - A Year in Review

LED Retrofit - Londonderry Mall Parking Lot & Parkade Lighting.

  • 862 existing luminaires replaced or retrofitted with LED.
  • Overall power savings of 64%
  • Payback calculated at ~4 years
  • Expected life 14.5 years @ 6700 hours per year

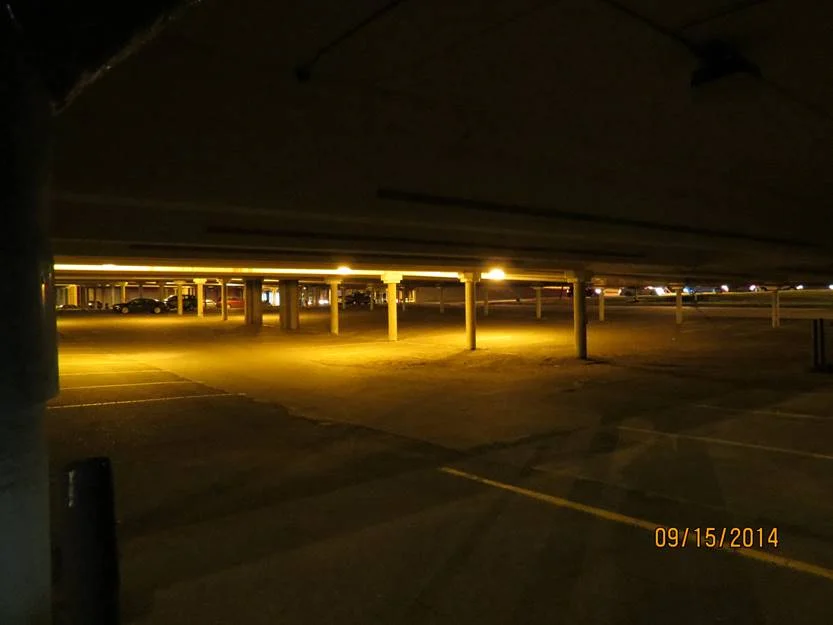

Parkade 150W HID luminaires.  .35 fc average.

Parkade 150W HID luminaires.  .35 fc average.

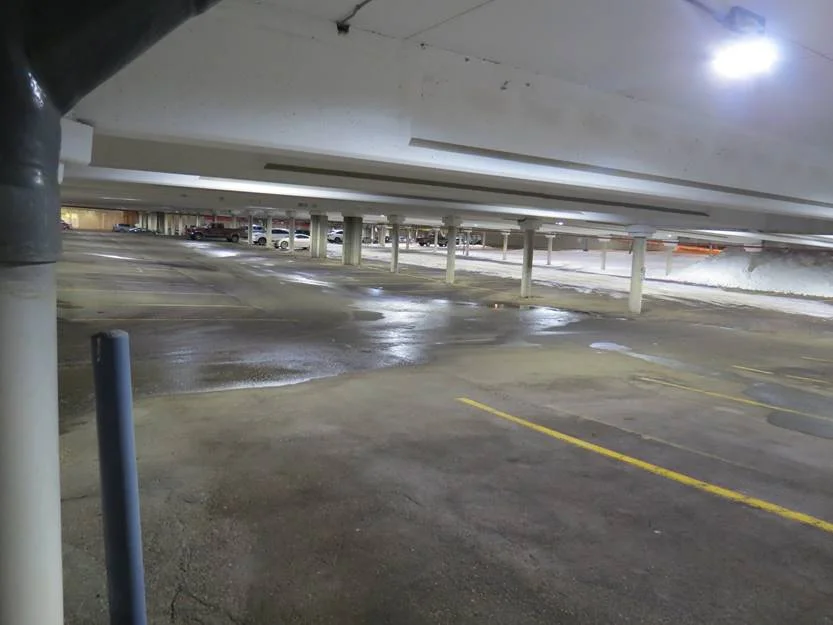

Replaced with 94W LED.  From 0.35 fc to 2.69 fc average.

Replaced with 94W LED.  From 0.35 fc to 2.69 fc average.

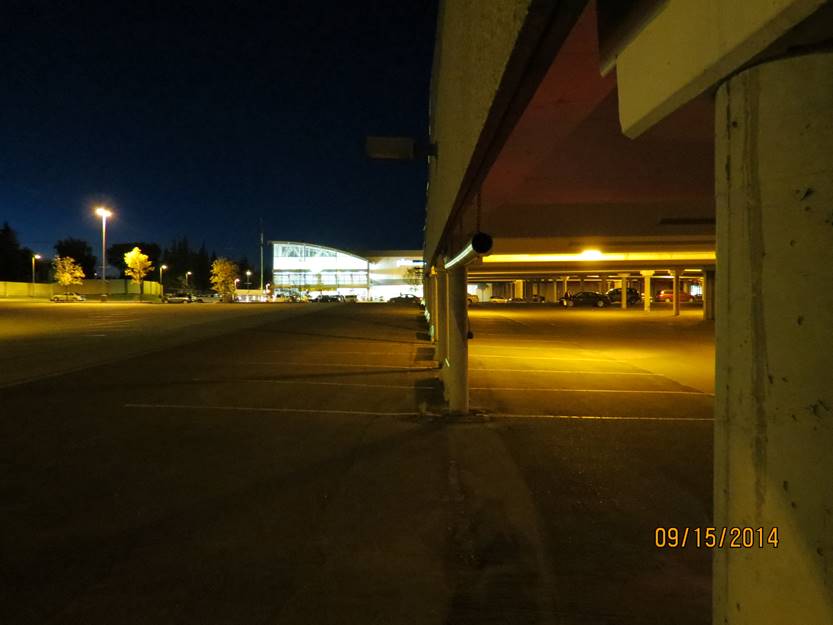

Existing 1000 Watt HID.  <0.7 fc avg

Existing 1000 Watt HID.  <0.7 fc avg



Replaced with 223W LED.  From <0.7 fc to 3.22 fc average.

Replaced with 223W LED.  From <0.7 fc to 3.22 fc average.

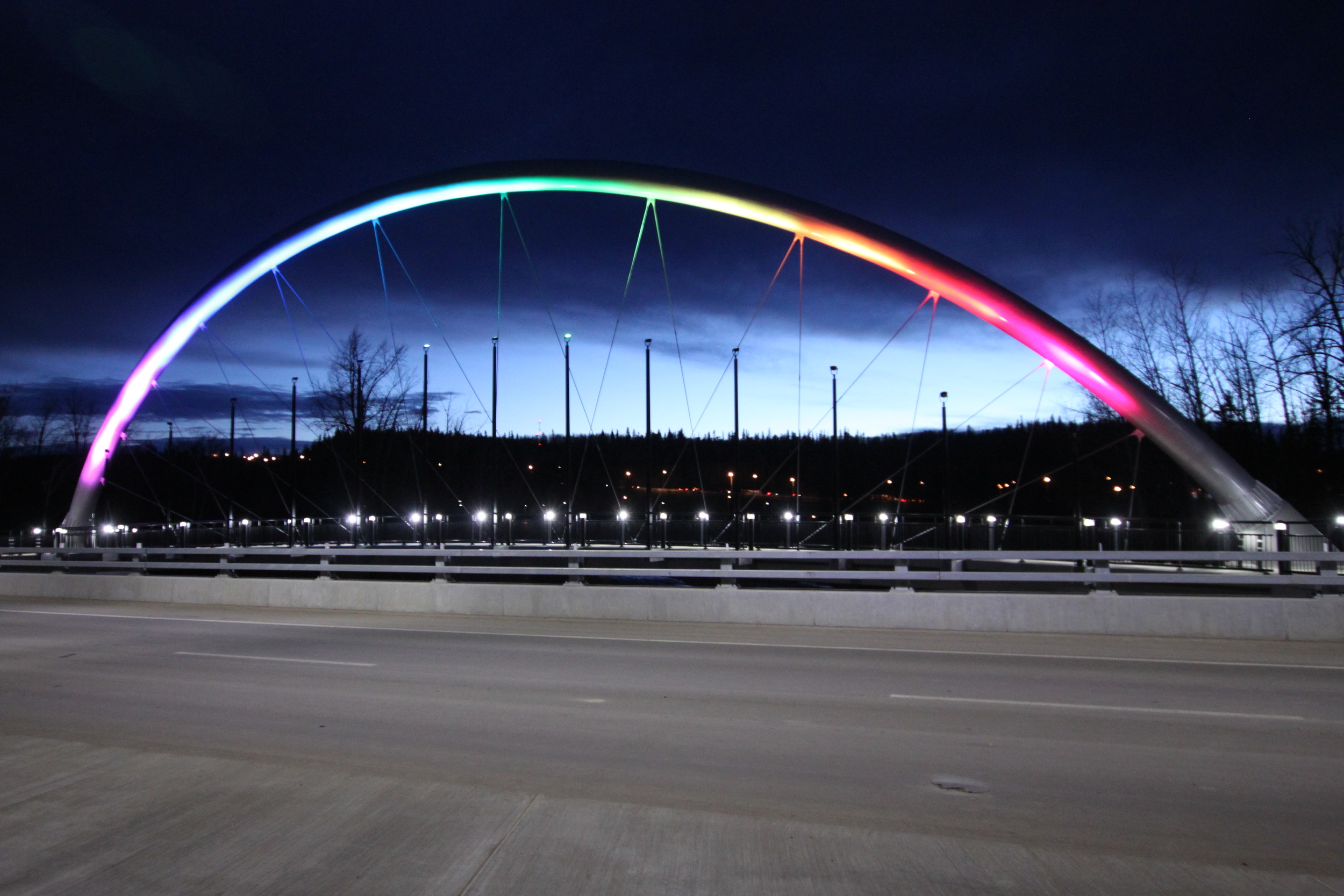

RGB Lighting - Saline Creek Pedestrian Bridge

  • Steel Archway acts as a canvas for lighting effect.
  • Linear Spread lenses with a 10° beam
  • Pedestrian bollards and security lighting controlled by photocell.
  • 3 weekly programs
  • Additional programs for holidays and sports teams
  • Can operate stand alone or via ethernet and various local digital and analog inputs.
  • Supplementing the holiday programs, effects include:
    • A complete rainbow spectrum moving gradually across the bridge.
    • A small band of colour shooting or bouncing back and forth across the bridge.
    • A Canada Day display with red and white moving gradually across the bridge.
    • A uniform colour gradually shifting between 7 different colours.
    • A fixed multi-coloured display with up to 14 bands.

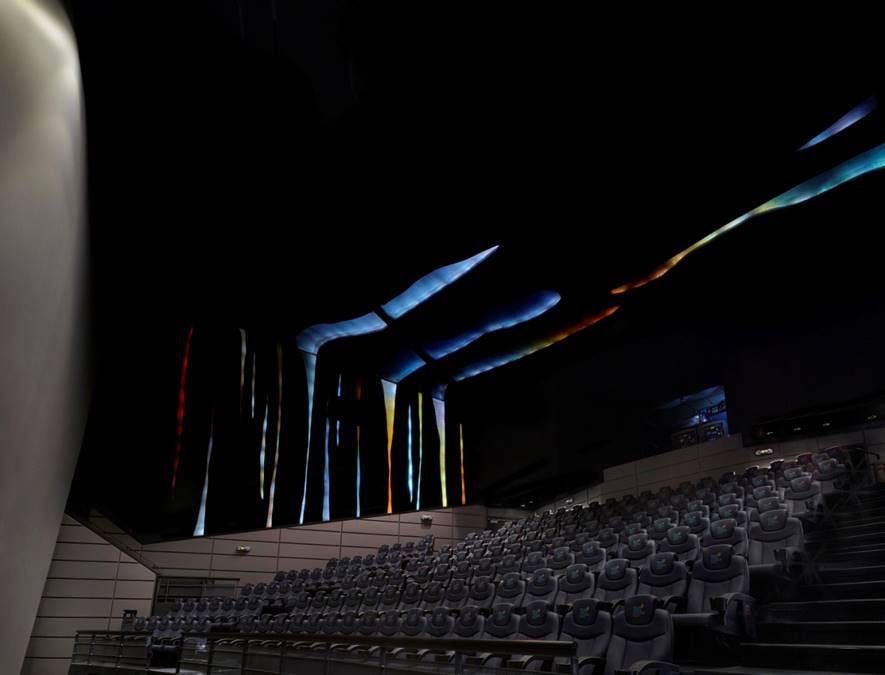

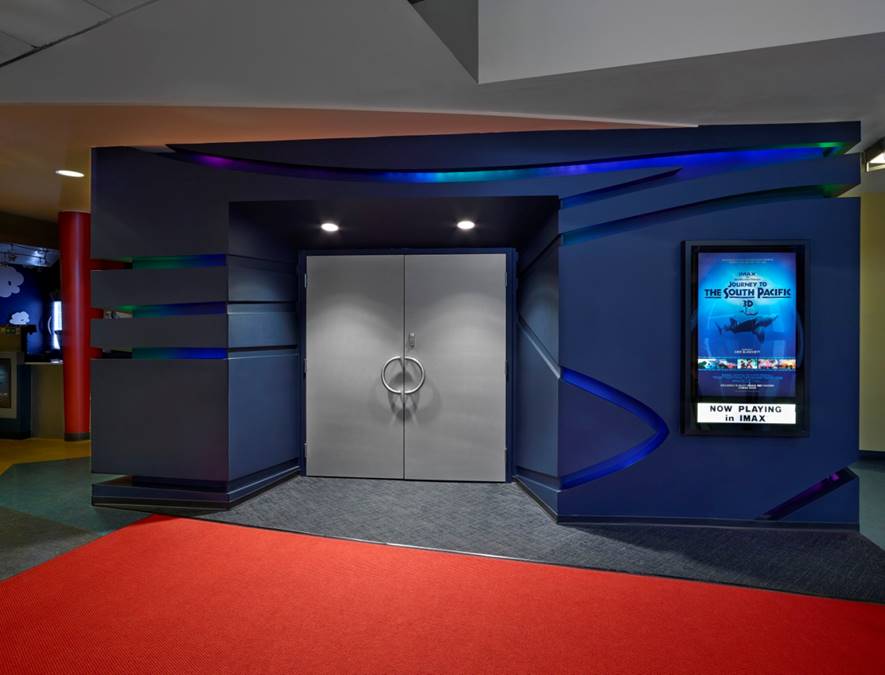

LED RGB Lighting - Telus World of Science (Edmonton Space & Science Centre) IMAX theatre

  • Complete upgrade to the IMAX theatre (House lighting & Special effect lighting)
  •  Energy reduction in excess of 50%
  • Fixtures selected to blend in to architecture when turned off.
  • Lighting system completely automated:  Triggered by dry contact closures from the automated projection system.
  • Multiple control methods used
    • Ethernet / DMX
    • 0-10V
    • Line voltage dimming.

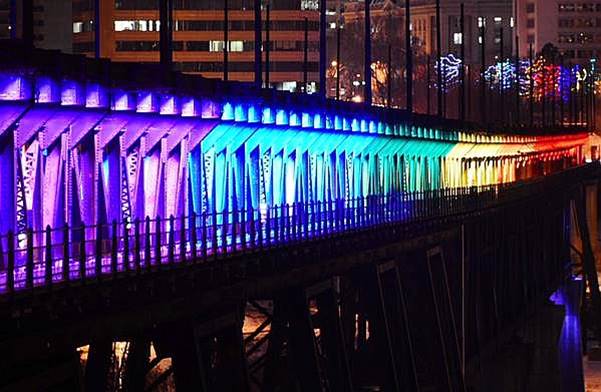

 RGB Lighting - High Level Bridge

  • 15,000 channels on an ethernet network
  • Obey 40 Universal DMX controller
  • No drilling of structural steel
  • Strategic use of lensing required
Almost 1 mile of linear product

Almost 1 mile of linear product

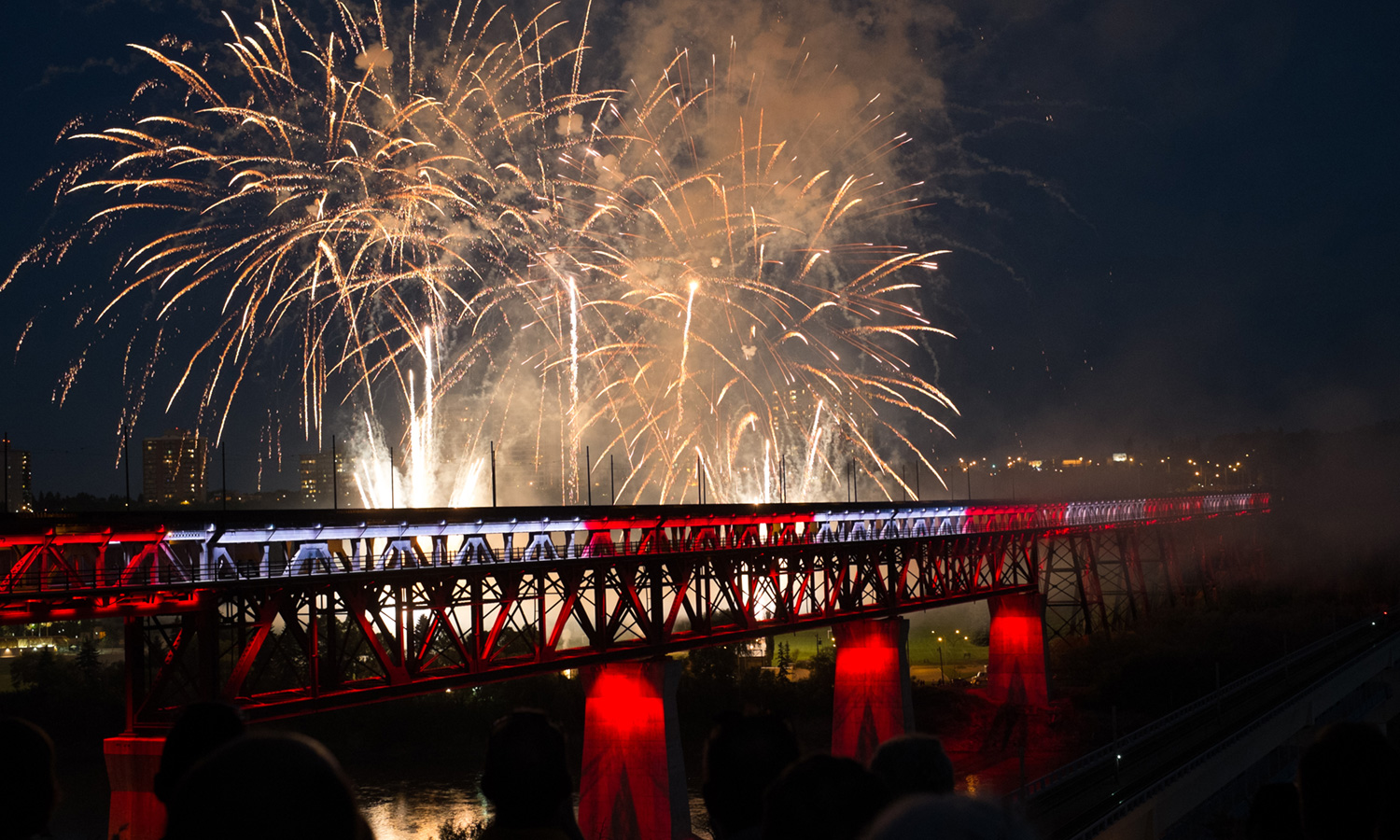

System was completed and designed note by note to synchronize the lighting to the music for the big Canada Day reveal!

System was completed and designed note by note to synchronize the lighting to the music for the big Canada Day reveal!
